- Microcontroller: ATmega168 or ATmega328V
- Operating Voltage: 2.7-5.5 V
- Digital I/O Pins: 14
- PWM Channels: 6
- Analog Input Channels: 6
- DC Current per I/O Pin: 40 mA
- Board will run from 2V to 5V.
- The latest version of the LilyPad supports automatic reset for even easier programming.
- The back side of the LilyPad is now completely flat!

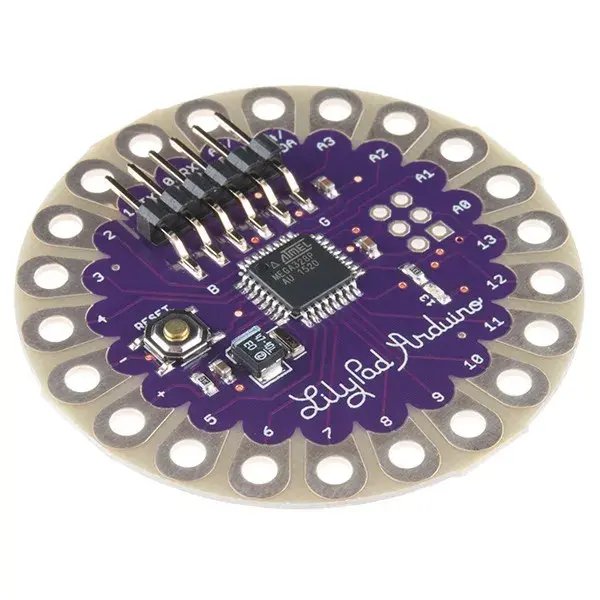

LilyPad 328 ATmega328P Main Board 16M Compatible with Arduino
The Lilypad Arduino ATMega328P 16M HW-1 Board is a compatible Arduino-program micro-controller is designed to be easily integrated into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package design to minimize snagging and profile. With wide tabs that can be sewn down and connect with conductive thread.
The LilyPad consists of an ATmega328 compatible with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible.
This board will run from 2V to 5V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of (+) and (-), can control an attached input or output device (like a light, motor, or switch).
Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They’re even washable!
